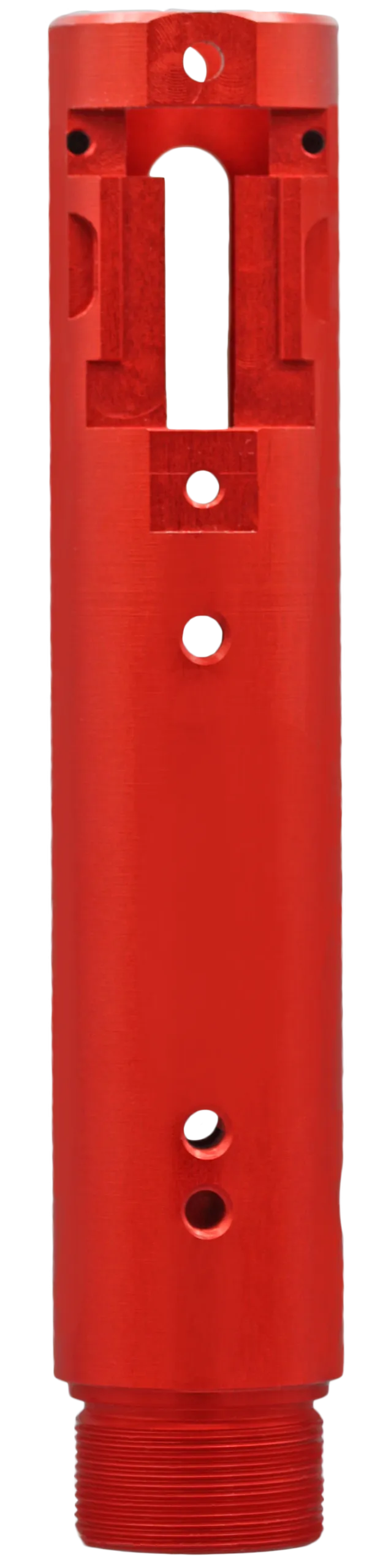

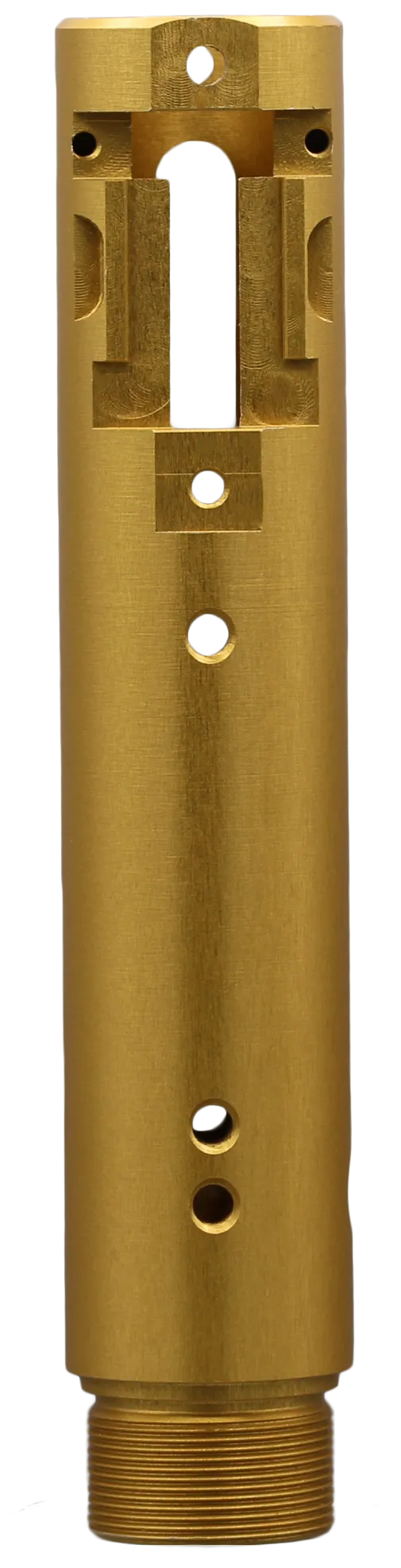

We manufacture both simple and highly complex precision turned parts, as well as CNC-turned components, from virtually any material—delivering outstanding quality throughout.
We go beyond the ordinary: using state-of-the-art, high-performance CNC lathes, we produce complex components from all common materials — including free-cutting steels, stainless steels, brass, aluminum, and selected plastics.
Our production capabilities cover diameters from 1 to 65 millimeters and lengths of up to 1,500 millimeters.
This approach represents the most reliable way to manufacture complex geometries while ensuring highly efficient production of turned parts.
All of our CNC turning centers are equipped with integrated back-side machining and driven tools. By utilizing B, C, and Y axes, we are able to manufacture even the most complex turned components without the need for secondary operations.
Thanks to our high degree of flexibility and the use of a wide range of machine concepts, we can provide a tailored solution for your specific component requirements—delivering outstanding value for money.
In many cases, this manufacturing process is the most efficient way to produce even the most complex contours and geometric requirements without further downstream operations. We manufacture short turned parts on machines with integrated rear-side machining, driven tools, and B, C, and Y axes.
Production batch:
From 500 pieces to several million pieces
Dimensions:
3-65 mm
Essential for special geometric requirements – Long turning technology is used for turned parts where the length to be machined exceeds a certain dimension. We are able to machine turned parts up to 400 mm in length, with a maximum total component length of up to 1,500 mm. In the long turning range, our machines are equipped with integrated rear side machining, driven tools, and a Y-axis.
Production batch:
From 500 pieces to several million pieces
Dimensions:
1-38 mm
This proven manufacturing technology is still relevant today when it comes to the economical production of turned parts with a low to medium degree of difficulty. Thread milling and polygon cutting can also be carried out in addition to conventional turning.
Production batch:
From 1,000 pieces to several million pieces
Dimensions:
3-36 mm
ABC Speedline
C100
C200
Star SR-20 JIIA
Star SR-20 JIIB
Star SB20 Type F
Star SB20R Type G
Star SB12R Type G
Star SR-38 Type B
Star SW-20
Nakamura NTY3-150
TD 26
TD 36
In turned parts manufacturing, commonly used materials include free‑cutting steels, stainless steels, aluminum, brass, and engineering plastics. The machinability, strength, and surface requirements of the material determine the selection of tools, cutting parameters, and the machining strategy.
Even if your project material is not listed here, please contact us—we will be happy to assess a cost‑effective and efficient solution for you.
Sliding headstock turning is primarily used for components with a high length-to-diameter ratio. By guiding the material through a guide bushing, the workpiece is supported close to the machining point. This minimizes deflection and ensures high dimensional accuracy as well as excellent surface finish.
